PulseBlasterUSB
Portable,
Programmable TTL Pulse Generator, Delay
Generator, Digital Word Generator and Timing
Engine

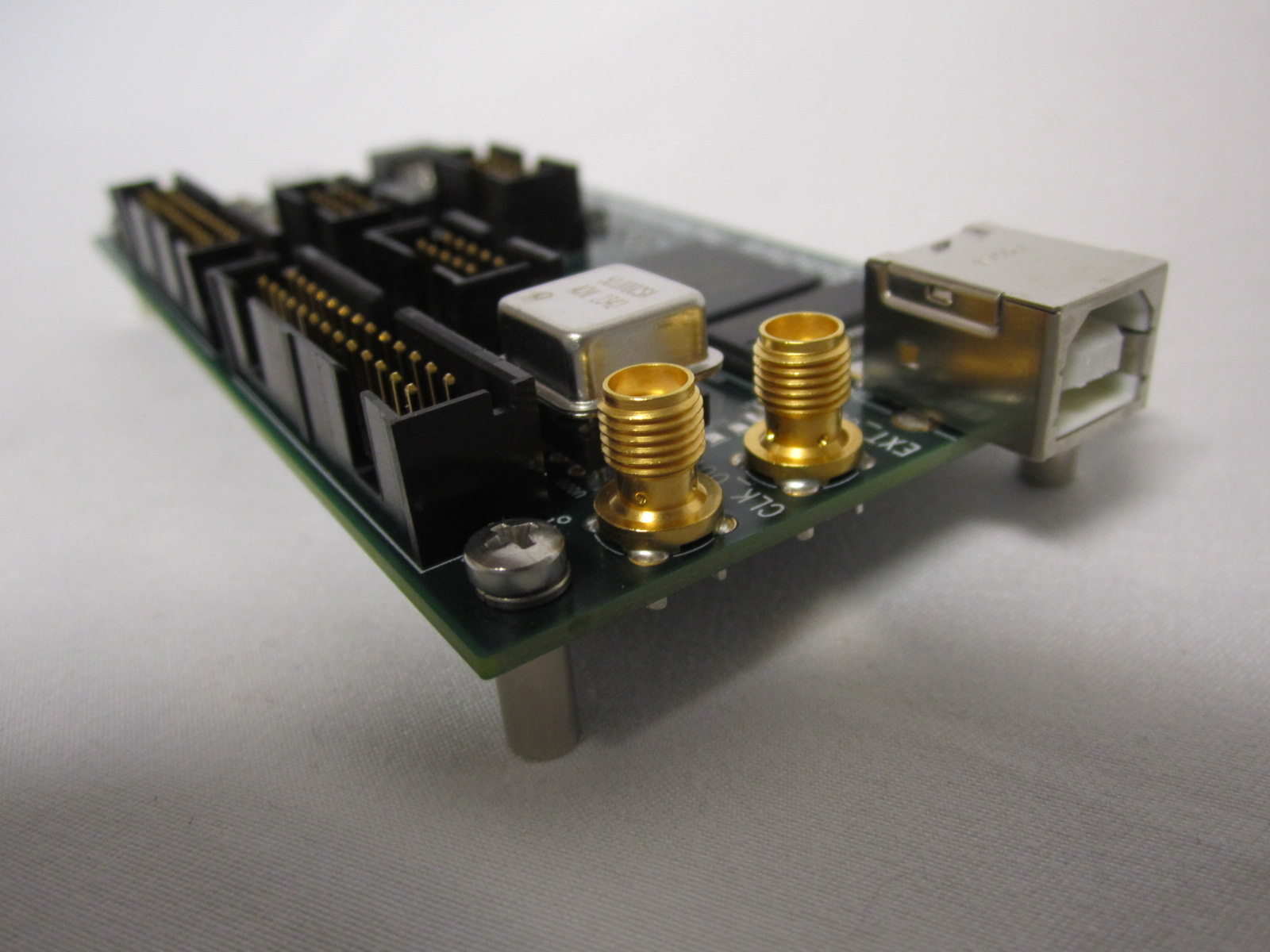

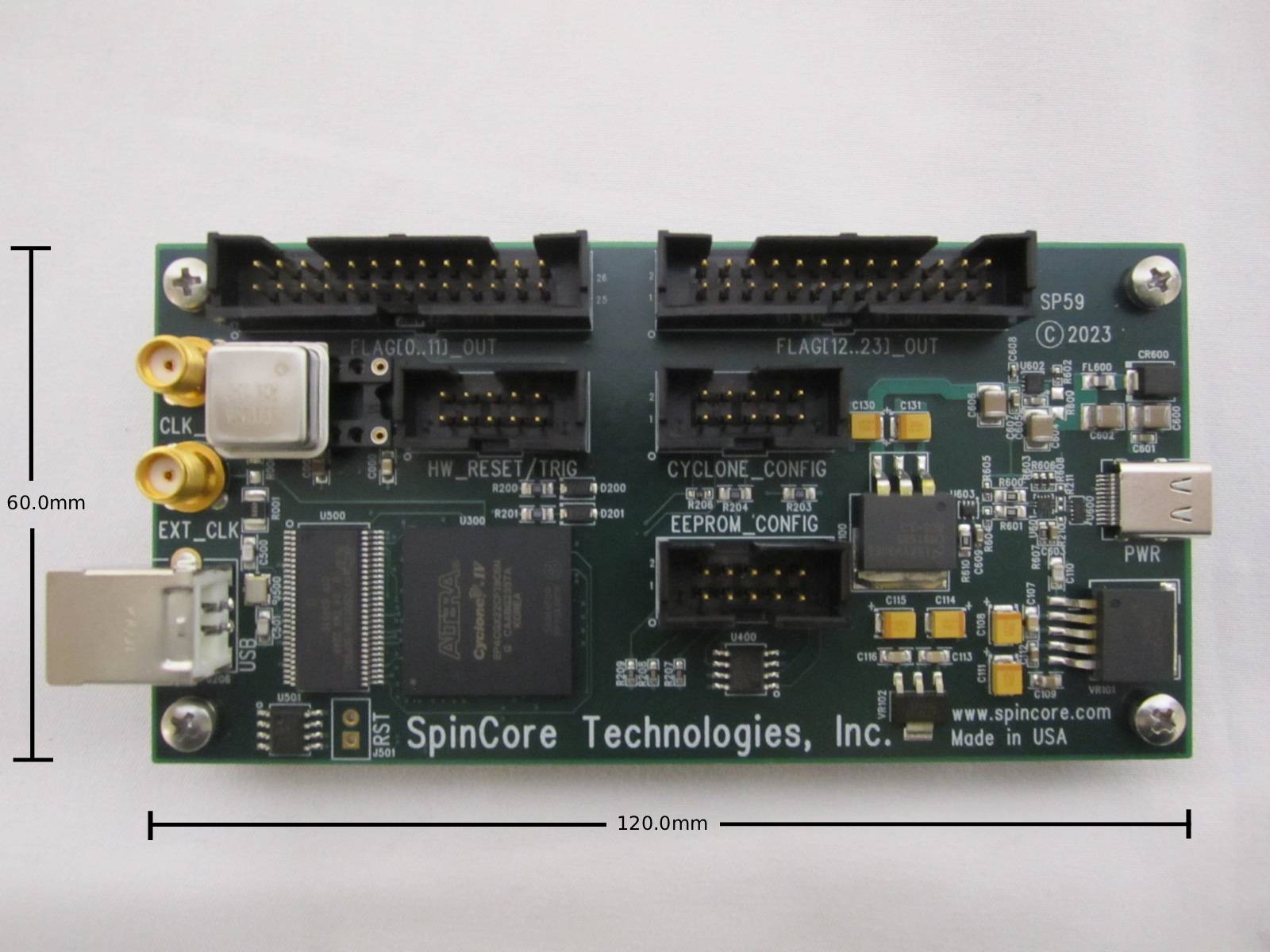

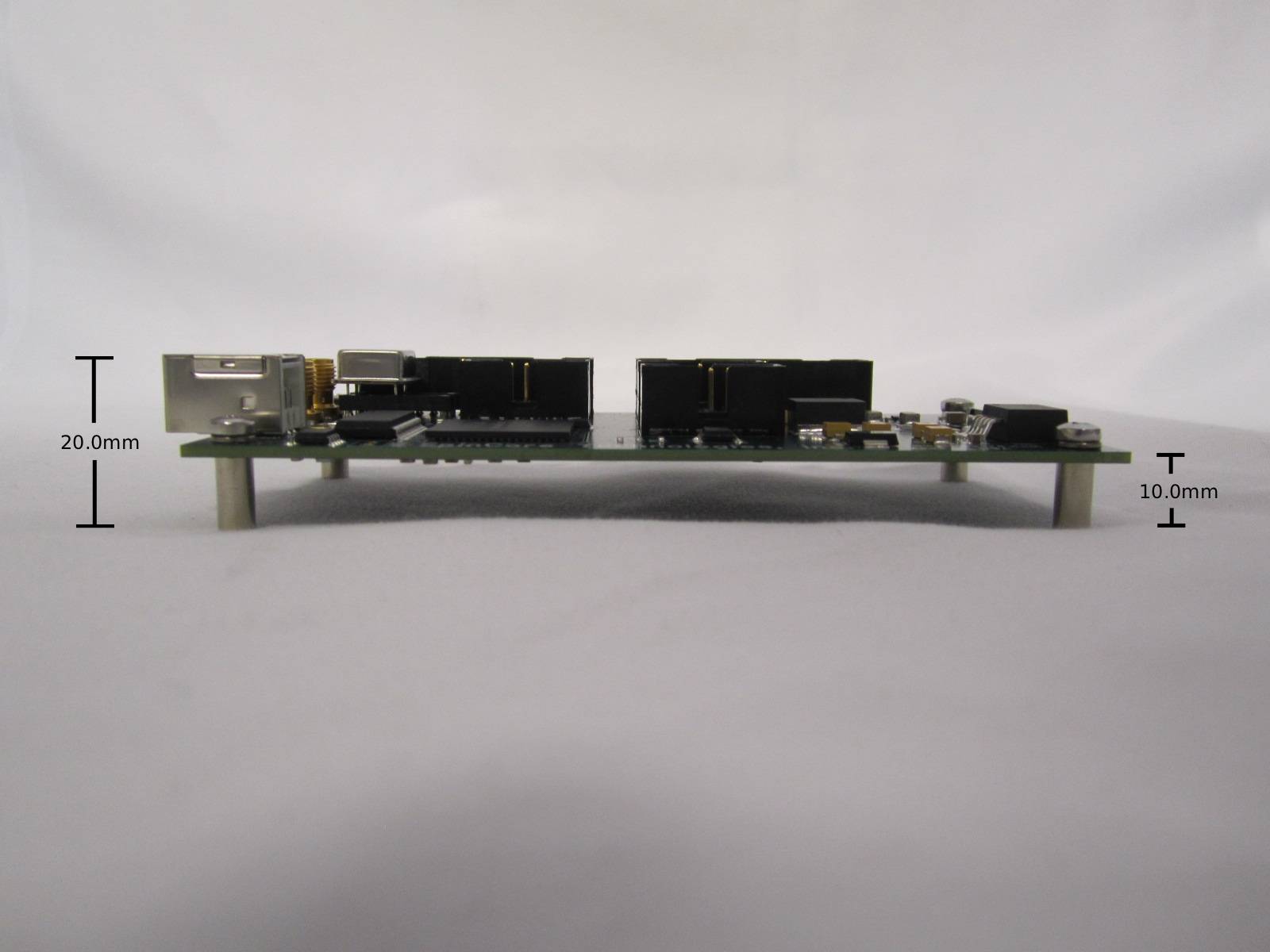

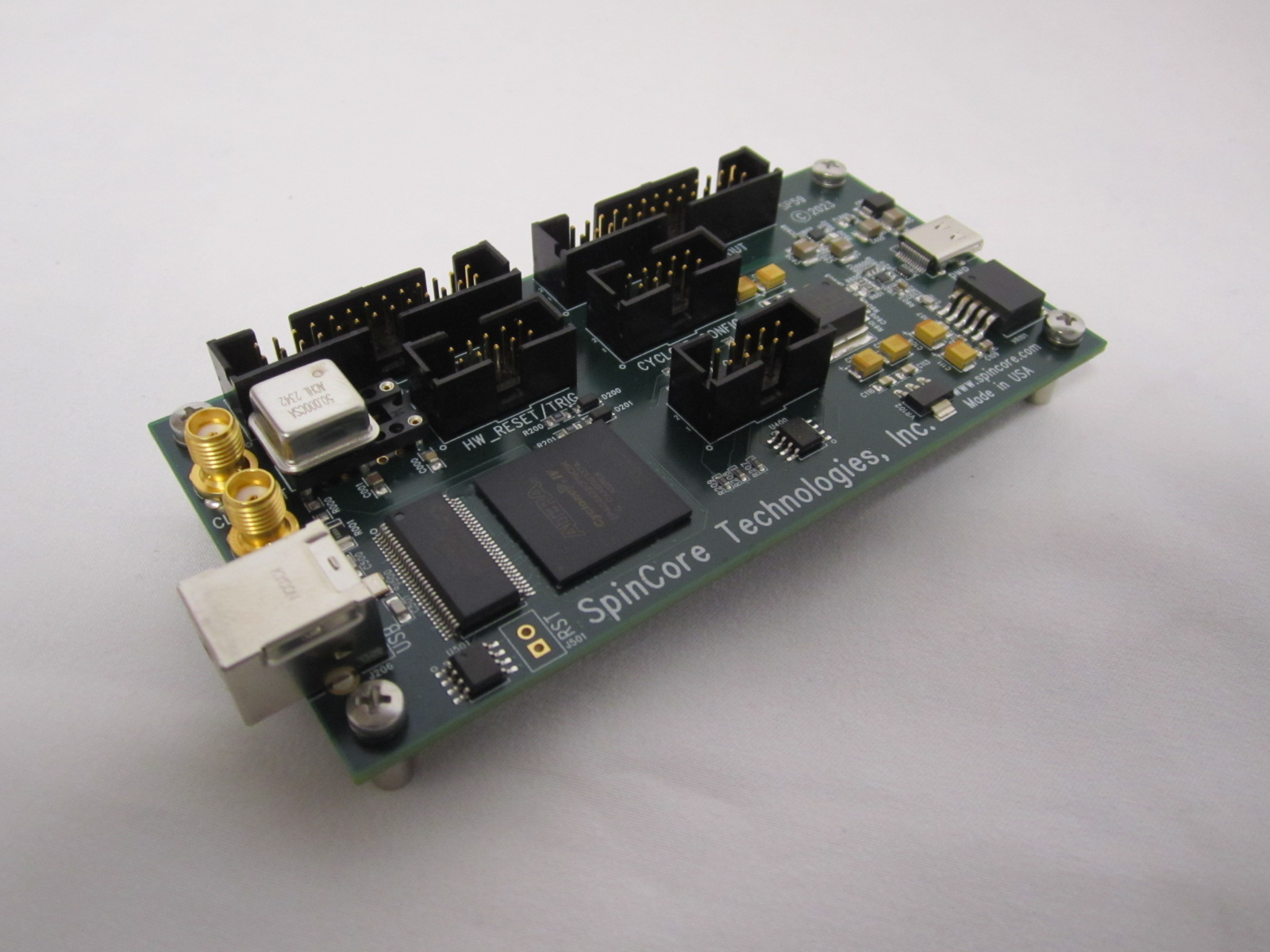

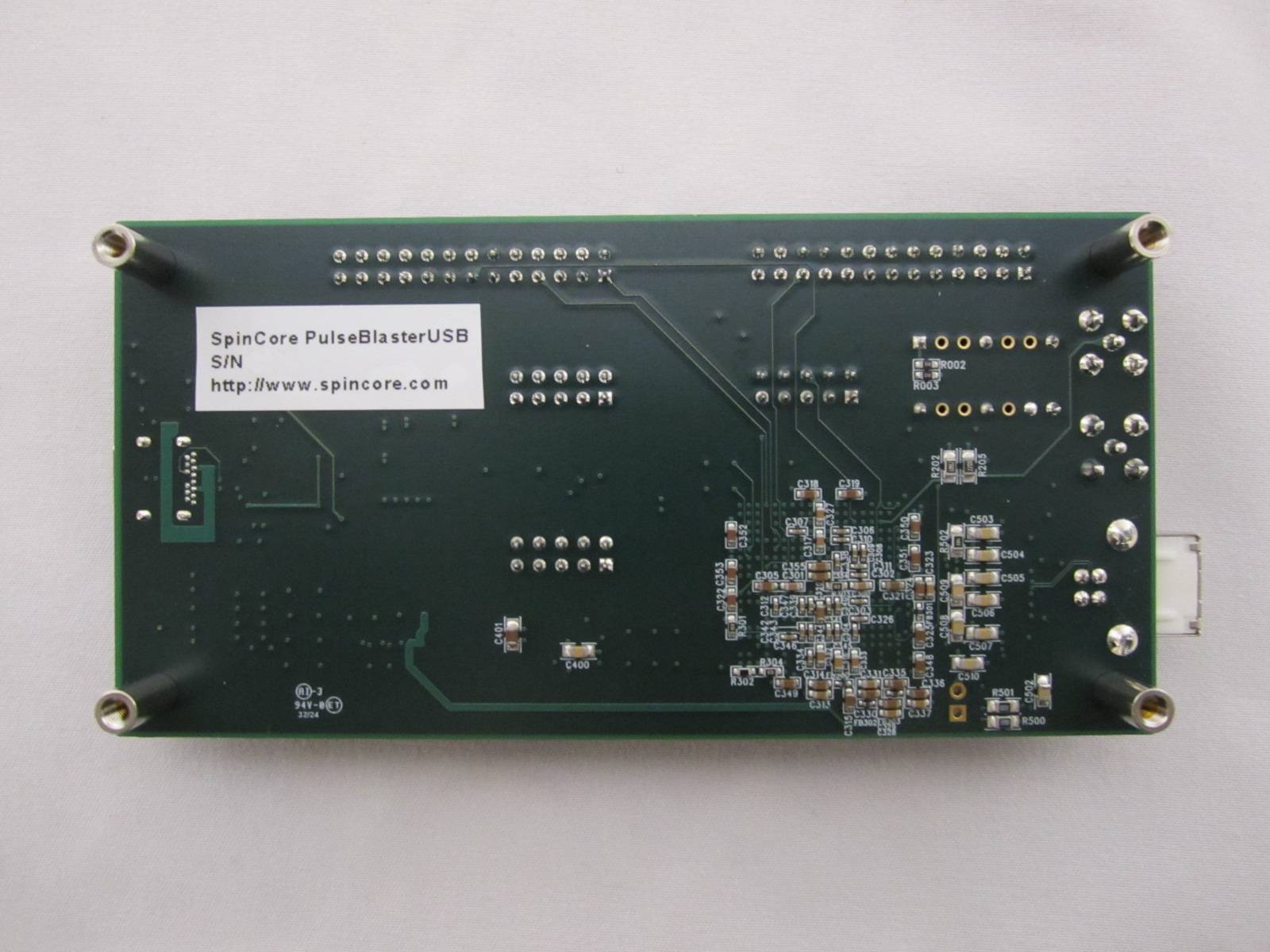

Small board, laboratory use
desktop enclosure (2U rack mountable, 2" depth
or 10" depth variants), 2U rackmount front panel
form factors available.
Models and Ordering Information
| Image |
Model |
Price |
Order |
|
PB12-100-4k-USB (small board, 12
channel, 100 MHz)
- 12 channels
- 100 MHz
- 4k memory words
- USB-B data
- USB-C power NEW!
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$1295 |
|
|
PB24-100-4k-USB
(small
board, 24 channel, 100 MHz)
- 24 channels
- 100 MHz
- 4k memory words
- USB-B data
- USB-C power NEW!
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$2195
|
|
|
PB24-100-8k-USB (small board, 24
channel, 100 MHz)
- 24 channels
- 100 MHz
- 8k memory words
- USB-B data
- USB-C power NEW!
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$2495
|
|
|
PB24-100-4k-USB-RM-FP (Laboratory use,
2U front panel rackmount)
- 24 channels
- 100 MHz
- 4k memory words
- USB-B data
- 2U rackmount front panel
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$3395
|
|
|
PB24-100-4k-USB-RM
(Laboratory
use, small desktop, rack mountable)
- 24 channels
- 100 MHz
- 4k memory words
- USB-B data
- 2U rackmount/desktop enclosure
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$3495
|
|
|
PB24-100-4k-USB-RM2 NEW! (Laboratory use,
small desktop, rack mountable, 2" depth)
- 24 channels
- 100 MHz
- 4k memory words
- USB-B data
- USB-C power
- 2U rackmount/desktop enclosure (2"
depth variant)
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$3495
|
|
|
PB24-100-8k-USB-RM2 NEW! (Laboratory use,
small desktop, rack mountable, 2" depth)
- 24 channels
- 100 MHz
- 8k memory words
- USB-B data
- USB-C power
- 2U rackmount/desktop enclosure (2"
depth variant)
- 10 ns pulse resolution
- 60 ns shortest pulse
|
$3795
|
|
PulseBlasterUSB is a
portable, stand-alone, programmable digital
pulse (TTL levels), pattern, and word generator.
The product is plug-and-play, and controlled via
USB. The 10" depth 2U rackmount variant includes
an internal power supply (universal A/C input,
90-265 V). Enables the generation of complex
pulse and pattern sequences for NMR, MRI,
ultrasound, mass spectrometry, and related
resonance and test technologies.
Key Specifications
- Standard clock stability of 100 ppm, with
optional oven-controlled clock oscillator
(OCXO) of 200 ppb
- Up to 24 individually controlled digital
output lines (TTL levels)
- Variable pulses/delays for every output line
- Pulses ranging from 60 ns to over one week
per interval with constant pulse resolution of
10 ns
- 25 mA output current per channel
- Up to 8k pulse/pattern program memory words
- Advanced pulse program flow control
- Nested loops, up to 8 levels
- 20-bit loop counters (over 1 million
repetitions at a time)
- "Wait for event" function
- High maximum retriggering frequency (above 1
MHz)
Similar Products
Applications
Complex,
high-speed, multi-channel pulse, pattern, and
word generation. Customers’ applications have
included
- Experiment and process control in Electron,
Nuclear and Quadrupole Resonances (ESR, NMR,
NQR)
- Mass Spectrometry and related test
technologies
- Ultrasound, radar, and medical imaging
- Laser control in advanced communication
- Solid state physics experiments
- Nanomagnetism and spintronics applications
- Robotics and process synchronization
- Complex Pattern Generation
- Delay generator
- General laboratory use
- For more, please visit our Applications
Page
Product Manuals
Free Software Support
- Available as a part of the SpinAPI Package:
- Example programs (executables and C source
files)
- PulseBlaster Interpreter for easy
programming without writing C code
- The SpinAPI package available for download
on the Software Downloads
page
- Interfaces and examples - PBInterpreter,
PulseBlaster.NET, LabView,
Matlab
Warranty Information
- Standard warranty - two years for boards and
one year for rackmount systems
- Longer warranty periods available
- Money-back guarantee – 30 days
|
