Low-EMI PulseBlasterUSB: Low Electromagnetic Interference Portable USB Pulse Generator

Low EMI PB

Specifications
Applications
Ordering Information
Manuals, etc.

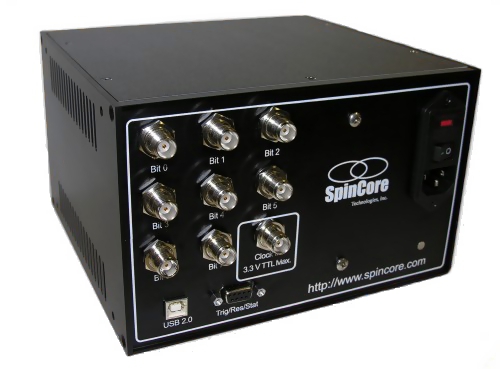

Low-EMI PulseBlasterUSB is a low electromagnetic interference version of our PulseBlasterUSB. This system features a low noise power supply, shielded enclosure, 8 output channels through TNC connectors and an external clock input connector.

Key Specifications

  • High performance, filtered AC power entry module.
  • Low-noise 3A linear power supply.
  • Custom enclosure with enhanced shielding.
  • TNC connectors for each output channel.
  • External clock input (1kHz to 50MHz).
  • Slowed slew rate of the output pulses.
  • Reduced 12mA output current per channel.
  • 8 Programmable Digital Output Bits (20ns resolution @ 50 MHz).
  • Automatic USB communication shutdown at low clock frequencies (below 50 MHz)

Applications

Complex multi-channel pulse generation where Low-EMI functionality is critical. Examples may include:

  • Experiment and process control in Electron, Nuclear and Quadrupole Resonances (ESR, NMR, NQR)
  • Mass Spectrometry and related test technologies
  • Ultrasound, radar, medical imaging
  • Laser control in advanced communication
  • Solid state physics experiments
  • Nanomagnetism and spintronics applications
  • Robotics and process synchronization
  • Complex Pattern Generation

Models and Ordering Information

Model Number of  Channels Pulse Resolution Shortest Pulse Memory Words
LowEMI-PulseBlasterUSB-TTL-8-100-4k  8  20 ns  100 ns  4k

NOTE: When ordering, please specify whether you are in the United States or elsewhere because our power supply module will need to be configured to accept proper AC voltage (120V/220V, 60Hz/50Hz)

To inquire about the availability and pricing of the Low-EMI PulseBlasterUSB system, please use our Contact Form.


Product Manuals

Free Software Support

  • Available as a part of the SpinAPI Package:
    • Example programs (executables and C source files)
    • PulseBlaster Interpreter for easy programming without writing C code
  • The SpinAPI package available for download on the Software Downloads page.
  • Interfaces and examples - PBInterpreter, PulseBlaster.NET, LabView, Matlab.

Warranty Information

  • Standard warranty  - two years
  • Longer warranty periods available
  • Money-back guarantee – 30 days.
